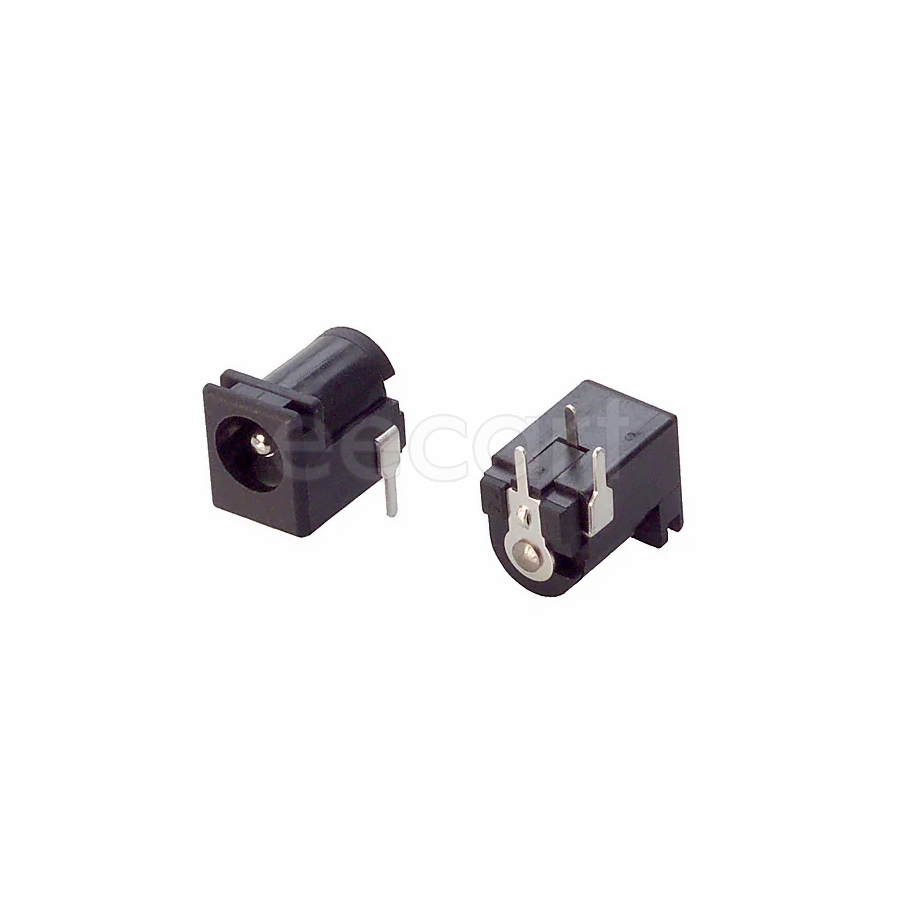

PJ-102BH
Manufacturer:
Same Sky
Mfr.Part #:
PJ-102BH
Datasheet:
Description:
Power Connectors Through Hole Current Rating:5 A Voltage Rating:24 V Jack Male
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 24 V |
| Termination | Through Hole |
| Diameter | 2.5 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Number of Pins | 3 |
| Height | 11.2 mm |
| Packaging | Bulk |
| Voltage Rating | 24 V |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Insulation Resistance | 100 MΩ |
| Contact Plating | Nickel |
| Contact Material(Contact Finish) | Copper, Nickel, Silver |
| Current Rating | 5 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Horizontal |
| Lifecycle Status | Production (Last Updated: 1 year ago) |
| Color | Black |
| Gender | Male |
| Shielding | Unshielded |
| Number of Contacts | 3 |
| Housing Material | Thermoplastic |
| Outside Diameter | 6.5 mm |
| Housing Color | Black |
| Inside Diameter | 2.5 mm |
| Number of Conductors | 2 |
| Contact Gender | Male |
| Schedule B | 8536695050 |
| Connector Type | Jack |
Stock: 5451
Distributors
pcbx
pcbxUnit Price$0.40704
Ext.Price$0.40704
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.40704 | $0.40704 |
| 10 | $0.34348 | $3.43480 |
| 25 | $0.32212 | $8.05300 |
| 50 | $0.30660 | $15.33000 |
| 100 | $0.29080 | $29.08000 |
| 300 | $0.27581 | $82.74300 |
| 500 | $0.26160 | $130.80000 |
| 1000 | $0.24812 | $248.12000 |
